LIGH-T 4
Compact Tethered Drone Station

Persistent overwatch capability is now accessible at all levels with the 4th generation of the Ligh-T tether station. Thanks to its ultra light 70m micro tether, you will be able to fly for hours with your DJI M350 as well as most other drones on the market. Easy to transport and ready-to-fly in less than 5 minutes, Ligh-T tethering station brings portability and usability to the next level.



Compatible multi drone icon for Elistair drone solutions

Multi-drone compatible, including the DJI M350

One station compatible with multiple drones up to 1500W of power.

Designed for
portability and
ease of use

Switch from a tethered drone to a free flying drone in less than 1 minute.

World icon for Elistair firefighting drone solution

Operational with
first responders in
over 60 countries

Improvements based on real world feedback from operational users.

LIGH-T 4

Compact Tethered Drone Station

Persistent overwatch capability is now accessible at all levels with the 4th generation of the Ligh-T tether station.

Ruggedized Structure IP51 Certified 70m (230 feet) Operational Altitude
Compatible with
the DJI M30 and More
1000+ Units Deployed On All Continents

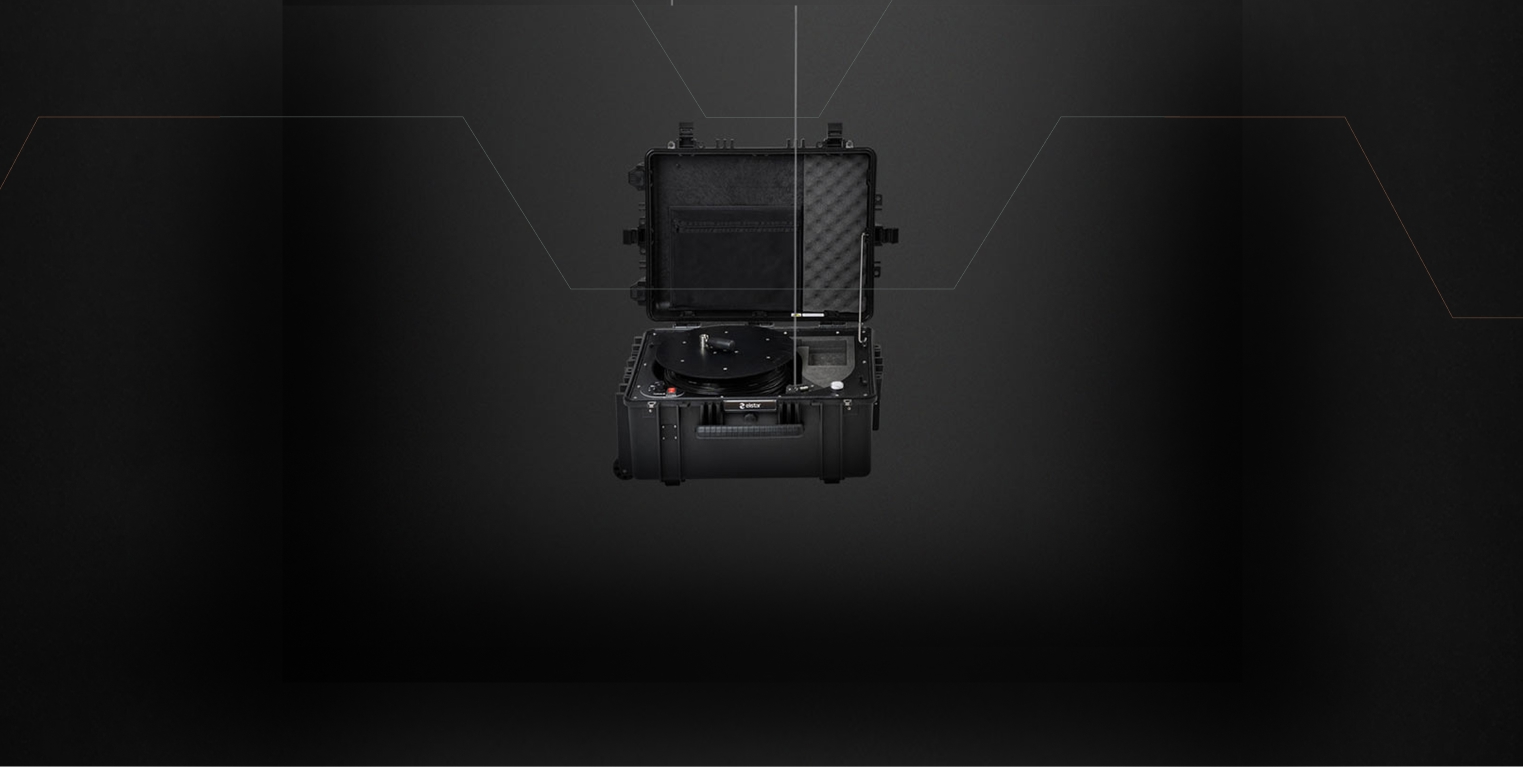

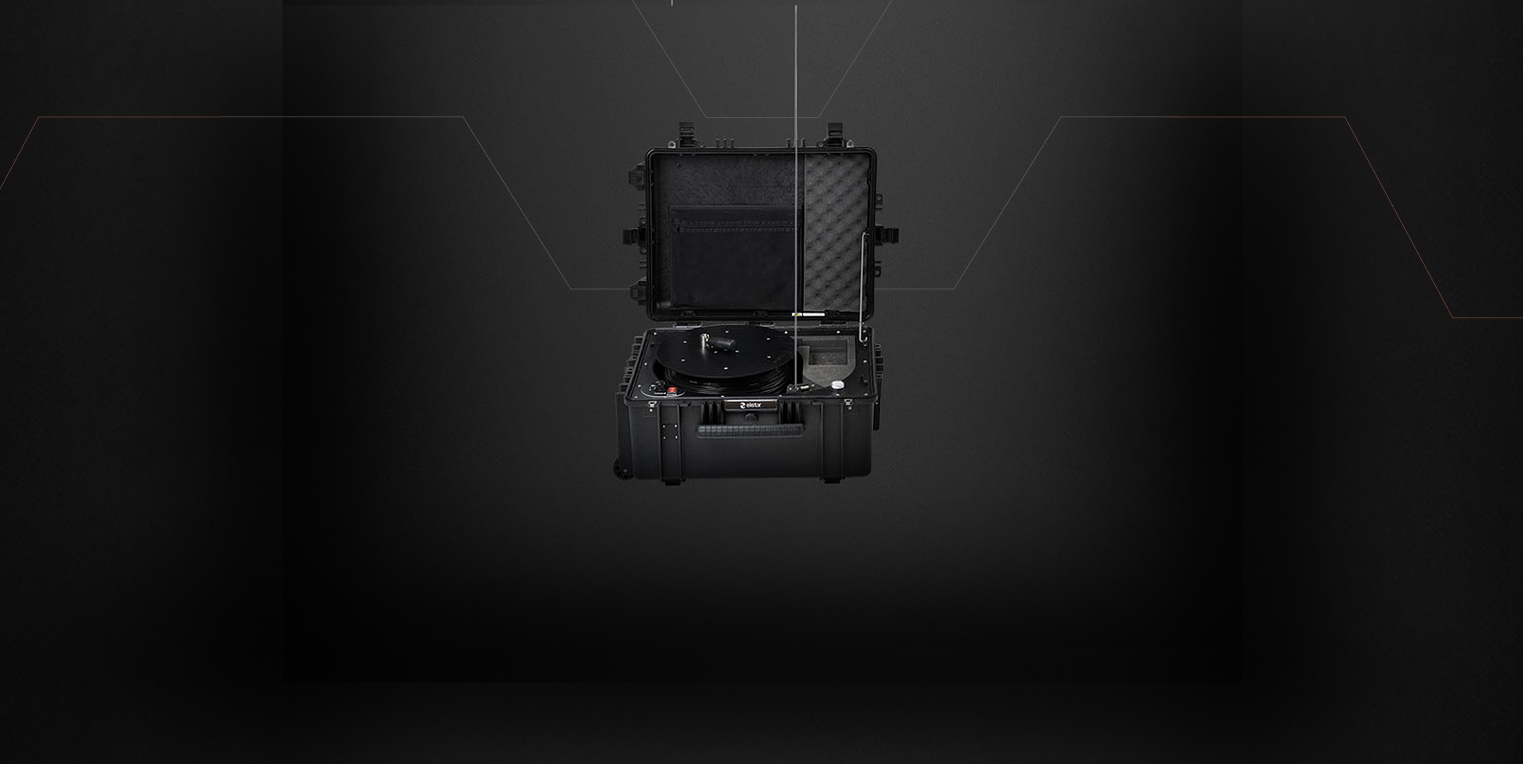

LIGH-T 4 Tethered Station

The M30 Ultimate Enhancement

The M30 Air Module is Elistair latest addition to its large range of Air Modules. This new addition to your air modules will allow you to benefit from the capabilities of the M30, for extended flight times.

Operating height:
70 meters

Tethered to free within seconds

Air Module weight:
500 grams

Deployment time:
5 minutes

The M30 Ultimate Enhancement

The M30 Air Module along with the Ligh-T 4 will allow you to benefit from the capabilities of the M30, for extended flight times.

Operating height: 70 meters

Tethered to free within seconds

Air Module weight: 500 grams

Deployment time: 5 minutes

Compatible Drones

Our range of Air Modules are compatible with DJI M300, DJI M200, DJI inspire 2 as well as a wide range of 6S and 12S drones with up to 1500W continuous power requirement.

Ask for your drone compatibility

* I consent to my submitted data being collected and stored by Elistair. You can consult your rights here

Use Case

Firefighter’s Monitoring Exercice

Unlimited power

Long flight endurance icon

8 minutes set uptime

3km coverage

Ligh-T 4 Technical Data

General

Cable length 70m – 230Ft
Output voltage 6S or 12S
Power input 110 – 220 VAC, 50 – 60 Hz
Tether
management
system
Electric and manual winch
Operational temperatures -10° to 40°C – 14° to 95°F

Portability

Set-up time Less than 5 minutes
Total weight 20kg – 44lbs
Portability Telescopic handle and wheels

Use Cases

Tethered drones for event security

Gas Leaking Monitoring Exercice

The exercise took place at an industrial site in Port-La-Nouvelle, France, and mobilized various teams …

LEARN MORE

Drone view showing firefighters operating in a refinery in Greece

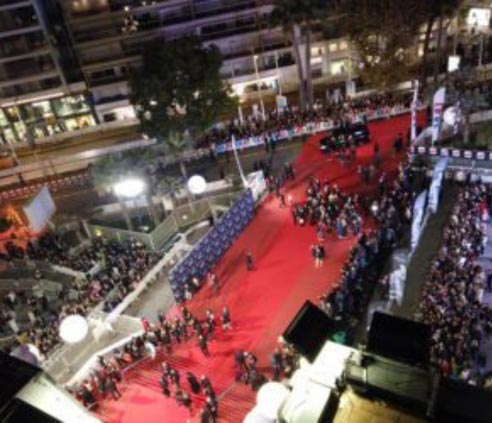

NRJ Music Awards Surveillance

A DJI M200 tethered to Elistair’s Ligh-T 4 station was deployed by Protec Group to secure the celebrities, public and staff …

LEARN MORE

Drone filaire Elistair

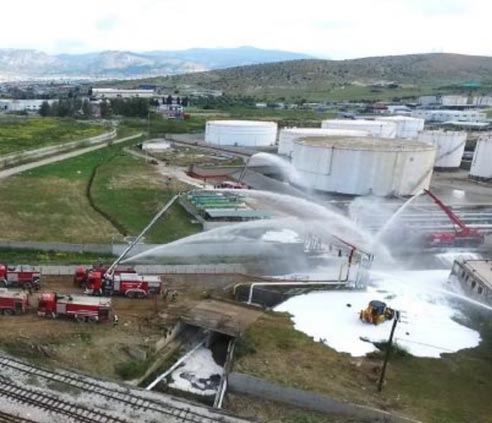

Refinery Fire Monitoring

To control the fire-threatening Oil and Gas infrastructures while preserving the first aiders’ safety, emergency teams needed …

LEARN MORE

System Reliability

Built for Persistance

All of our suppliers are qualified and meet specific requirements to ensure the use of high-quality components.

Ingress Protection

Ligh-T 4 has the IP51 rating. This standard helps maintaining operational integrity in challenging conditions.

Patents

The Ligh-T 4 system for powering the drone by the tether is patented to achieve top market performances.

Download the Ligh-T 4 Brochure

You'll receive it by email

* I consent to my submitted data being collected and stored by Elistair. You can consult your rights here
