SAFE-T 2
Advanced Tethered Drone Station

DOWNLOAD BROCHURE

The Safe-T 2 is a rugged tether station compatible with multiple drones on the market, including the DJI Matrice 350. With a 100m micro-tether and resistance to poor weather conditions, it provides an uninterupted overwatch capability for hours. The system is particularly suited for day-night aerial surveillance but also telecommunication applications using our optional fiber optics micro-tether.

Designed for the
most demanding
missions

IP54, with a 100m micro-tether, the Safe-T 2 is approved by the French Civil Aviation Authority.

Compatible with
the DJI M350 and multiple drones

One drone power tether station compatible with the widest range of 6S or 12S drones with up to 2200W continuous power.

Already chosen by multiple government agencies

Over 650 systems currently used around the world for defense and security operations.

SAFE-T 2

Advanced Tethered Drone Station

Add a new capability to your drone fleet by providing increased endurance for demanding operations thanks to drone tether power system.

DOWNLOAD BROCHURE


Ruggedized Structure IP54 Certified	90m (295 feet) Operational Altitude


Compatible with the DJI M350	1000+ Units Deployed On All Continents

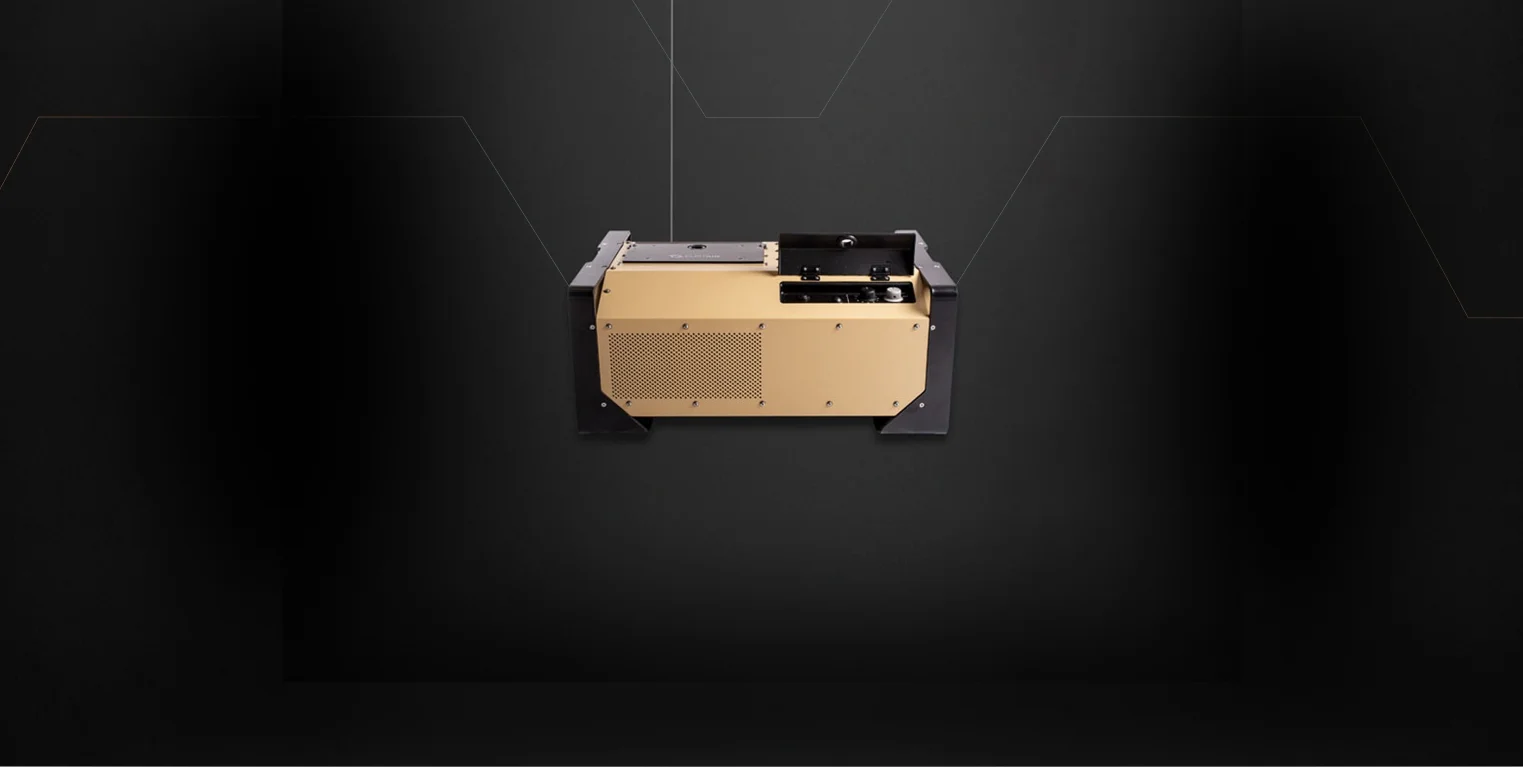

SAFE-T 2 Tethered Station

Advanced Tethered System

Tethering Station

100 m (330 ft) of lightweight micro tether with high-speed data transfer

Unlimited power for hours of overwatch capability

Robust structure, certified to IP54 standards

Compatible with a wide range of drones including DJI M350 or 6S and 12S drones from other manufacturers

Compliant with CE, and NDAA regulations

Optical fiber option available

Download brochure

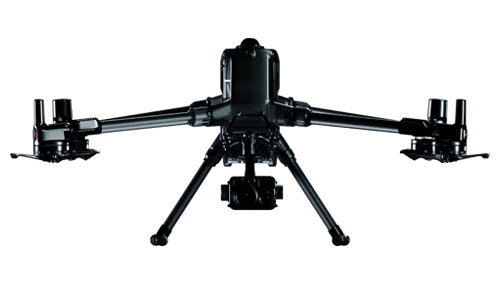

Compatible Drones

Our range of Air Modules allows compatibility with drones such as DJI M350, DJI M300, Flir SkyRaider and Acecore Zoe.

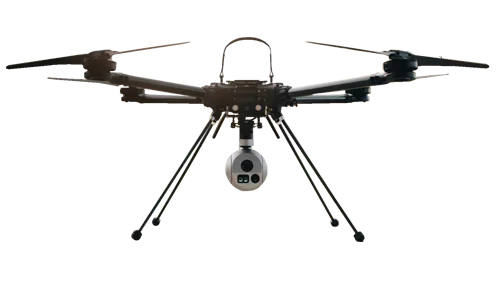

Tundra 2

Hexadrone

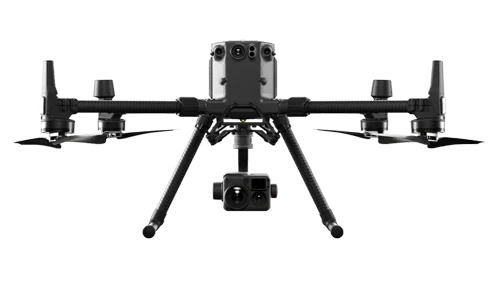

Matrice 350

DJI

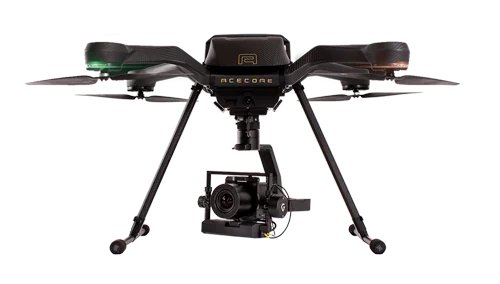

Zoe

Acecore

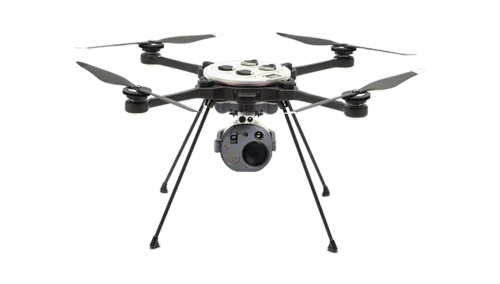

SkyRaider R80D

Flir

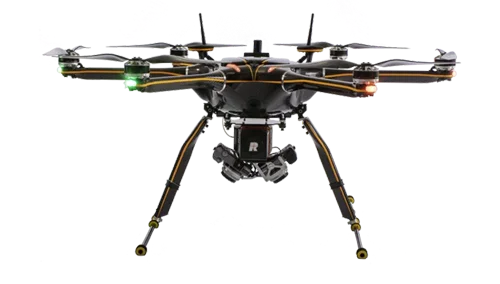

Darkmatter

Clogworks

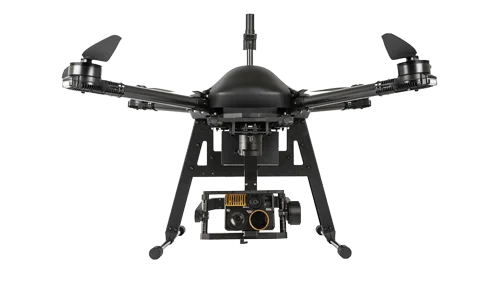

Airolit

XLT

Ask for your drone compatibility

* I consent to my submitted data being collected and stored by Elistair. You can consult your rights here

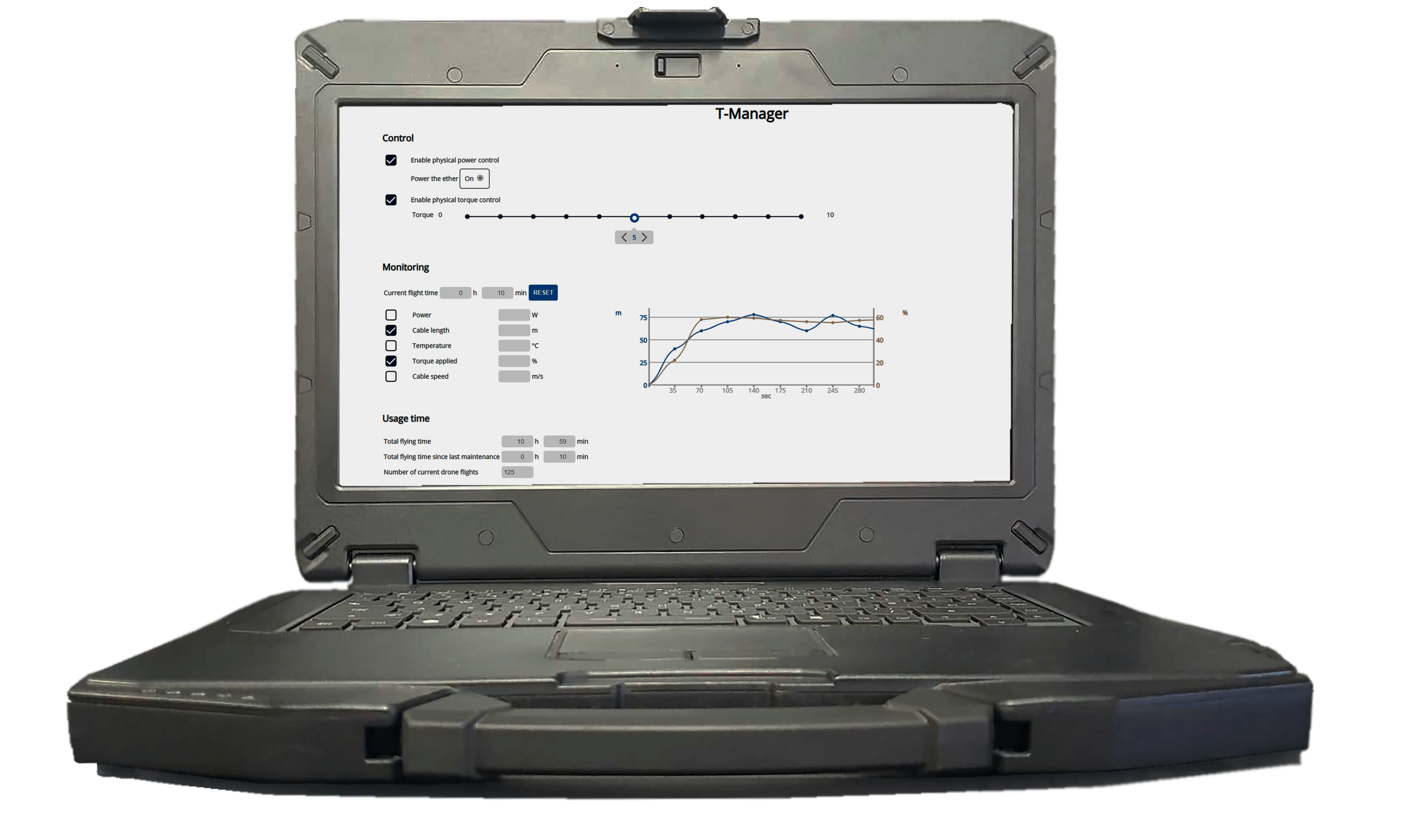

T-Manager Control and Monitoring Software

T-Manager is Elistair’s proprietary software allowing the user to control and monitor the Safe-T 2.3 tether station. T-Manager is accessible through a webpage and available on your mobile phone or laptop.

Control and monitor

Power and torque control
Real-time display of information (power, cable length, temperature, torque…)
Usage information (total flight time, flight since last maintenance…)

Update and configure

Update the PFC firmware, Safe-T Application firmware and tether configuration
Parameter of winch settings
Parameter of alarm settings, power alert setting, and tether out length alarm

Logs record

Enable or deactivate logs recording
Storage of flight logs in the station
Logs upload via the webserver
Option to erase the logs

T-Manager-Monitoring-and-Control-Software

Safe-T 2 Technical Data

General

Cable length	100 m – 330 Ft
Output voltage	6S or 12S
Power input	110 – 220 VAC, 50 – 60 Hz
Max continous power	2200 W
Tether management system	10 presets / Smart pre-programmed laws & reset functions

Robustness & Vehicle Integration

Ingress protection level	IP54
Operational temperature	-20° to 50° C – -4° to 120° F
Altitud max	4000 MSL
Vehicle integration kit	Modular metallic structure
