LIGH-T 4
Tether Station

Easily increase your drones endurance for overwatch event protection and crisis management missions.

LIGH-T 4

Tether Station

Easily increase your drones endurance for overwatch event protection and crisis management missions.

Persistent overwatch capability is now accessible at all levels with the 4th generation of the Ligh-T tether station. Thanks to its ultra light 70m micro tether, you will be able to fly for hours with your DJI M350 as well as most other drones on the market. Easy to transport and ready-to-fly in less than 5 minutes, Ligh-T tethering station brings portability and usability to the next level.

Persistent overwatch capability is now accessible at all levels with the 4th generation of the Ligh-T tether station.

More

Thanks to its ultra light 70m micro tether, you will be able to fly for hours with your DJI M300 as well as most other drones on the market. Easy to transport and ready-to-fly in less than 5 minutes, Ligh-T tethering station brings portability and usability to the next level.

Compatible multi drone icon for Elistair drone solutions

Multi-drone compatible, including the DJI M350

One station compatible with multiple drones up to 1500W of power

Designed for
portability and
ease of use

Switch from a tethered drone to a free flying drone in less than 1 minute

World icon for Elistair firefighting drone solution

Operational with
first responders in
over 60 countries

Improvements based on real world feedback from operational users

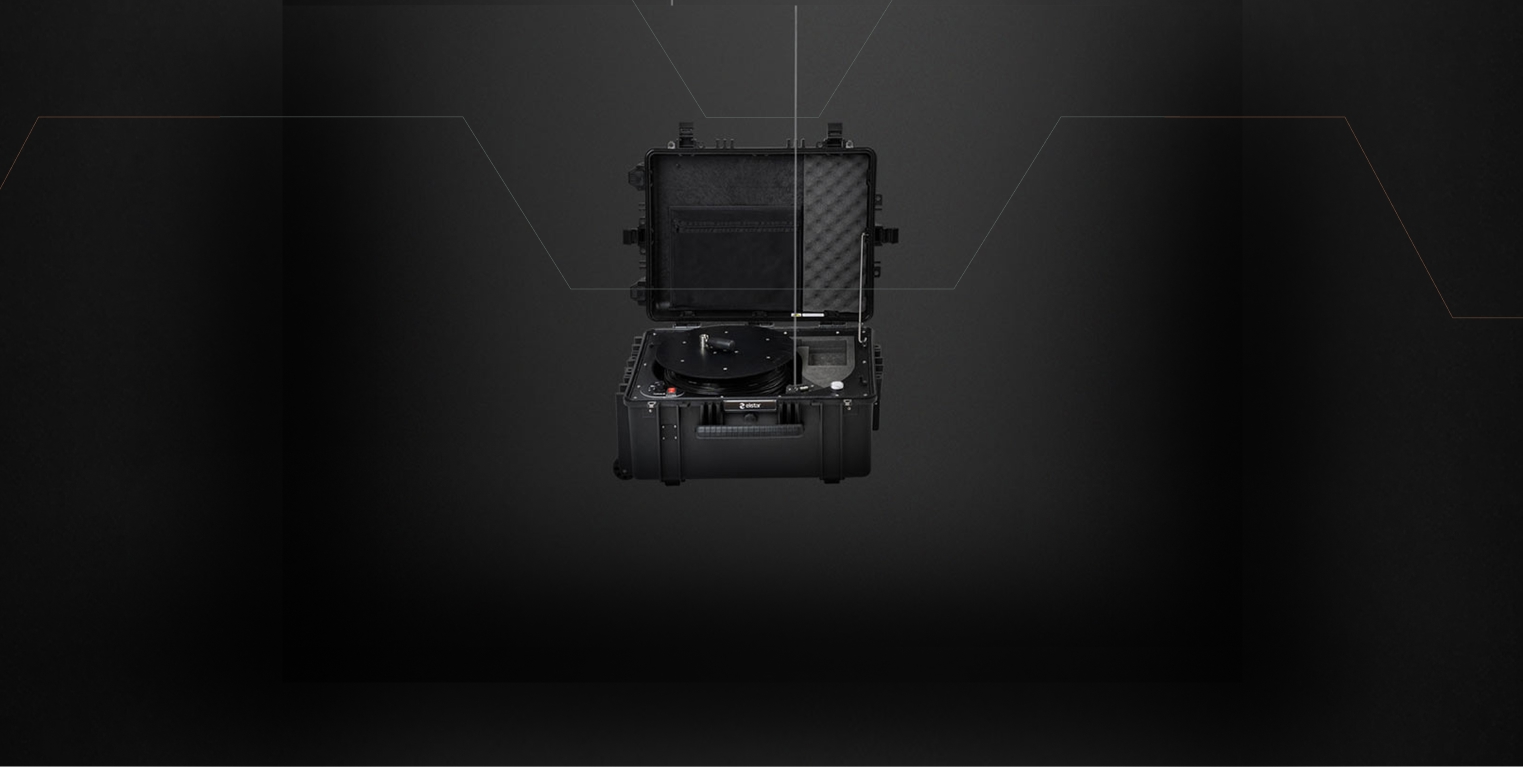

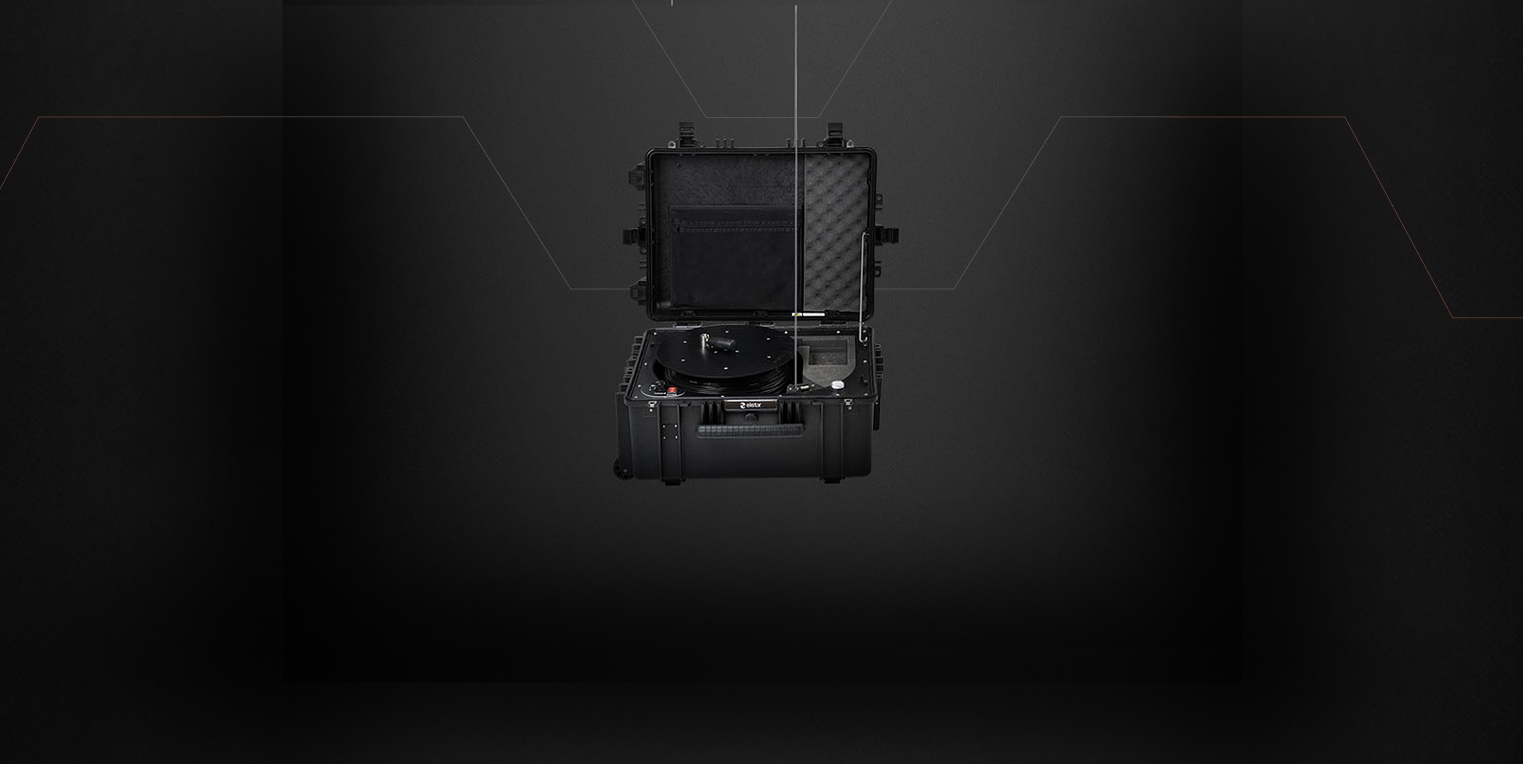

LIGH-T 4 Tethered Station

The M30 Ultimate Enhancement

The M30 Air Module is Elistair latest addition to its large range of Air Modules. This new addition to your air modules will allow you to benefit from the capabilities of the M30, for extended flight times.

Operating height:
70 meters

Tethered to free within seconds

Air Module weight:
500 grams

Deployment time:
5 minutes

The M30 Ultimate Enhancement

The M30 Air Module along with the Ligh-T 4 will allow you to benefit from the capabilities of the M30, for extended flight times.

Operating height: 70 meters

Tethered to free within seconds

Air Module weight: 500 grams

Deployment time: 5 minutes

Compatible Drones

Our range of Air Modules are compatible with DJI M300, DJI M200, DJI inspire 2 as well as a wide range of 6S and 12S drones with up to 1500W continuous power requirement.

Ask for your drone compatibility

* I consent to my submitted data being collected and stored by Elistair. You can consult your rights here

Ligh-T 4 Technical Data

General

Cable length 70m – 230Ft
Output voltage 6S or 12S
Power input 110 – 220 VAC, 50 – 60 Hz
Tether
management
system
Electric and manual winch
Operational temperatures -10° to 40°C – 14° to 95°F

Portability

Set-up time Less than 5 minutes
Total weight 20kg – 44lbs
Portability Telescopic handle and wheels

Use Cases

Drone for Event Surveillance

Public Event Surveillance: Trinidad and Tobago Carnival Overwatch

In 2019, Trinidad Carnival attracted over 35 000 visitors. To counteract an increase in crime rates against locals and visitors, Trinidad and Tobago Police contacted Rectrix Ltd. to provide a continuous aerial overwatch of the area with their drones powered by tether stations.

LEARN MORE

Drone for industrial site safety

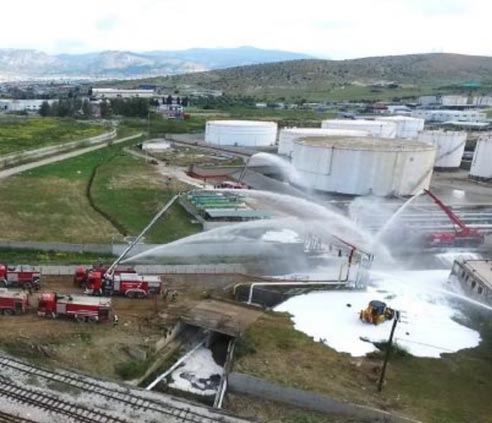

Industrial Site Safety: Refinery Fire Monitoring

To control the fire-threatening Oil and Gas infrastructures while preserving the first aiders’ safety, emergency teams needed a continous live detailed picture of the sensitive situation. The quick deployment of the tethered drone, DJI M300 and Ligh-T tethering station, allowed them to identify the dangers, and secure the perimeter.

LEARN MORE

System Reliability

Built for Persistance

All of our suppliers are qualified and meet specific requirements to ensure the use of high-quality components.

Ingress Protection

Ligh-T 4 has the IP51 rating. This standard helps maintaining operational integrity in challenging conditions.

Patents

The Ligh-T 4 system for powering the drone by the tether is patented to achieve top market performances.
